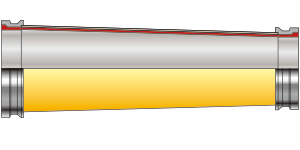

DECK REDUCERS

双层热处理变径管
TWIN-WALL HARDENED REDUCERS


我们的变径管有8mm的耐磨层和4.5mm的保护层，两端的碳化络法兰很好的保护管件免受过大冲击。
Our chrome carbide reducer with a 8mm liner and a 4.5mm shell. Weld ends having a chrome carbide liner to protect the pipe ends against excessive wear. Reducers are tagged with size, weight and working pressure.

KKR 10401

管件描述：
KEY PIPE SPECIFICATIONS AT A GLANCE

类型： 双层变径
硬度： 64HRC
工作压力： 85bar
管净重： 随长数变化
Reducer: Chrome carbide lined
Hardness: 64HRC
System: Varies
Weld ends: Steel with chrome carbide inserts
Weight: Varies per length
Working Pressure (min): 85bar

DN150/6 To DN125/5 TWIN WALL REDUCER
Length (mm) Inlet End  (DN150/6) Outlet End  (DN125/5) Weight  (KG)
1200（varies) ZX SK 148（varies) 43.5
Other degree elbows and ends are available upon request. Consult factory.

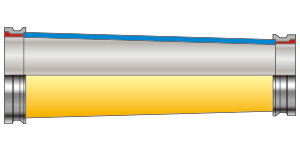

KKR 10402
双层热处理变径管（分体式）
TWIN WALL HARDENED REDUCER(SPLIT)

我们的分体式双层变径可以按照客户需求的尺寸定做，是我们性价比最高的产品之一。
Our another type of twin wall hardened reducer is a split type,having same lifetime as integrated one,also it's our most competitive one.

管件描述：
KEY PIPE SPECIFICATIONS AT A GLANCE

类型： 双层变径
规格： DN150-DN125
工作压力： 85bar
壁厚： 10mm
管净重： 随长数变化
Reducer Twin wall hardened reducer(split)
Heat Treatment Induction Hardened
System DN150/125
Weld ends Steel with chrome carbide inserts
Wall Thickness 10mm
Working Pressure (min) 85bar

DN150/6 To DN125/5 TWIN WALL REDUCER
Length (mm) Inlet End  (DN150/6) Outlet End  (DN125/5) Weight  (KG)
1200（varies) ZX SK 148（varies) 43.5
Other degree elbows and ends are available upon request. Consult factory.

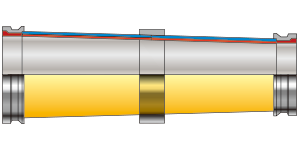

KKR 10403
单层变径管
SINGLE WALL REDUCERS

我们的使用寿命最长的单层变径，两端的碳化络法兰很好的保护管件免受过大冲击。
Our longest lasting single wall reducer. Weld ends have a chrome carbide liner to protect the ends against excessive wear. Reducers are tagged with size, weight and working pressure.

管件描述：
KEY PIPE SPECIFICATIONS AT A GLANCE

类型： 双层变径
规格： DN150-DN125
工作压力： 85bar
壁厚： 10mm
管净重： 随长数变化
Reducer Hardened Steel
Heat Treatment Induction Hardened
System DN150/125
Weld ends Steel with chrome carbide inserts
Wall Thickness 10mm
Working Pressure (min) 85bar

DN150/6 To DN125/5 TWIN WALL REDUCER
Length (mm) Inlet End  (DN150/6) Outlet End  (DN125/5) Weight  (KG)
1200（varies) ZX SK 148（varies) 37
Other degree elbows and ends are available upon request. Consult factory.
